Rotary Style Indexing Machines

Rotary assembly dials are a common and flexible type of machine. They can be configred as Semi-Automatic or Fully Automatic machines depending the customers requirements. Most common are automatic indexing machines which run from 20 parts per minute to 125 parts per minute.

Semi-Automatic indexing machines are best suited for lower volume and/or oddly shaped assemblies where automatic parts feeders would not be cost effective. A semi-automatic machine can also can be designed as a base machine for a fully automated assembly where product volume is expected to rise in the future.

Fully automatic machines are best for higher volume products which would benefit from reduced labor costs. They are also a good option for assembly inline with molding operations.

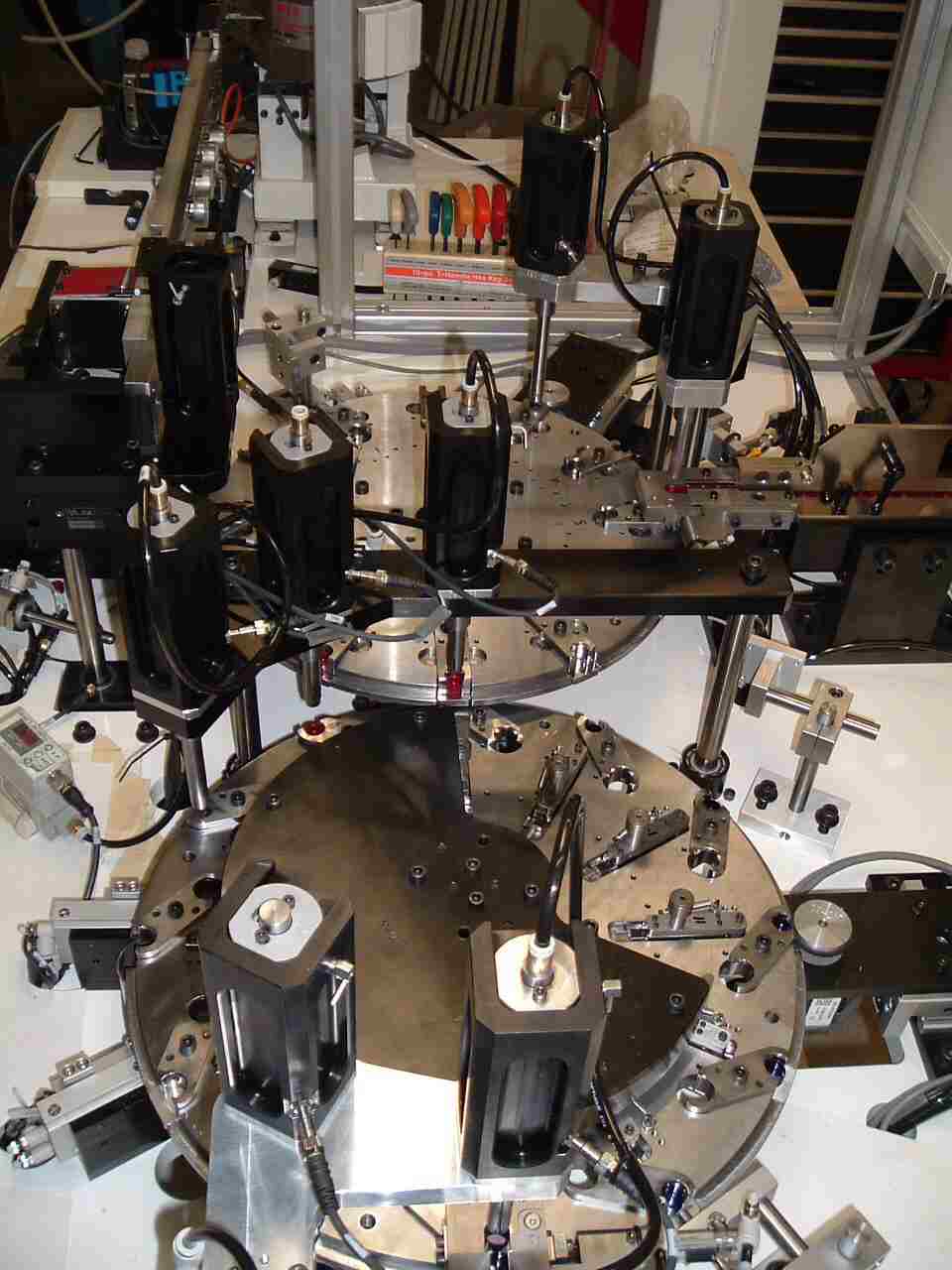

Dual Rotary
Semi Automatic (Hand Load) Rotary Assembly

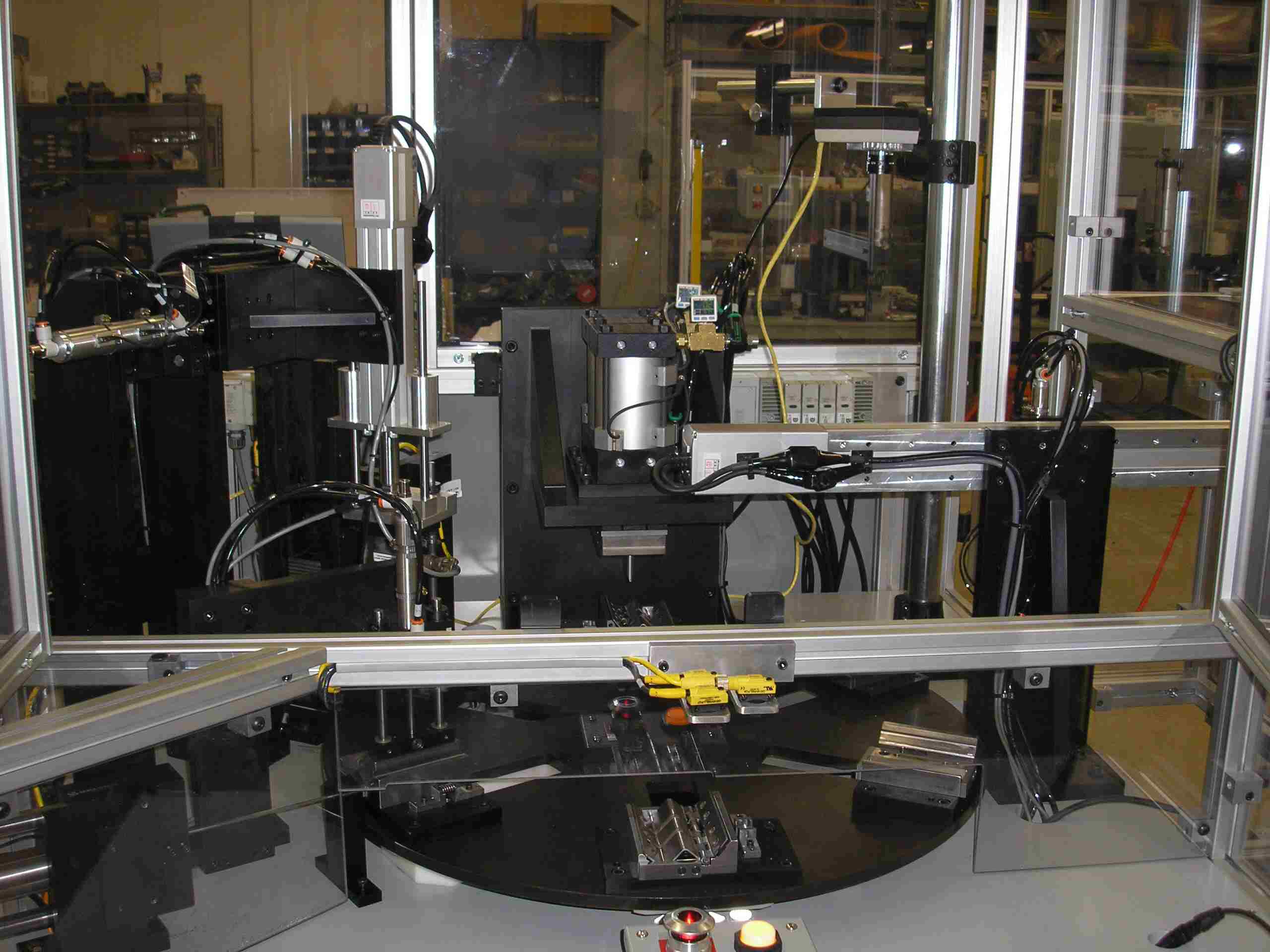

Semi Rotary
Semi Automatic (Hand Load) Rotary Assembly

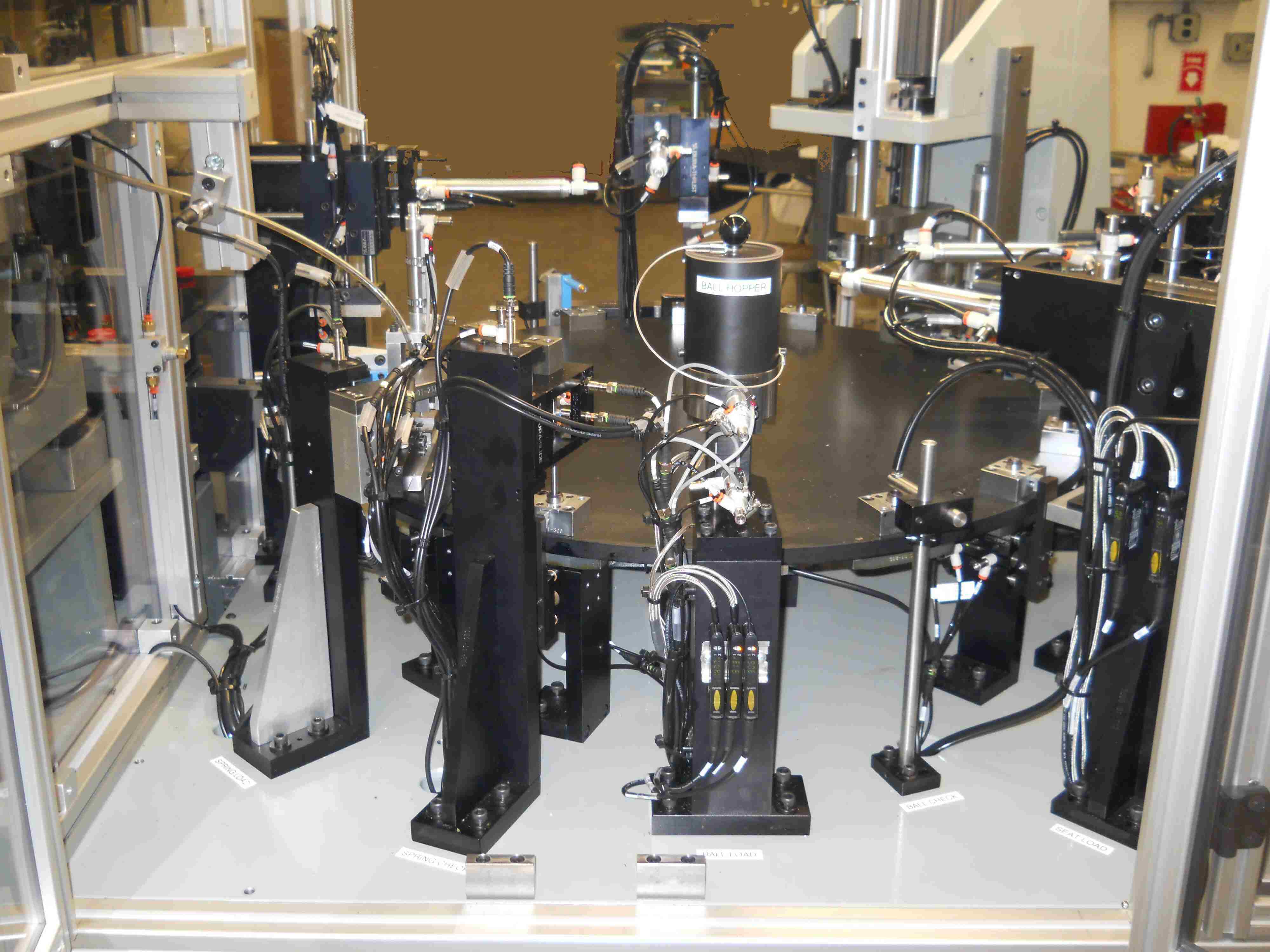

Auto Rotary
Fully Automatic Single Dial Rotary Assembly

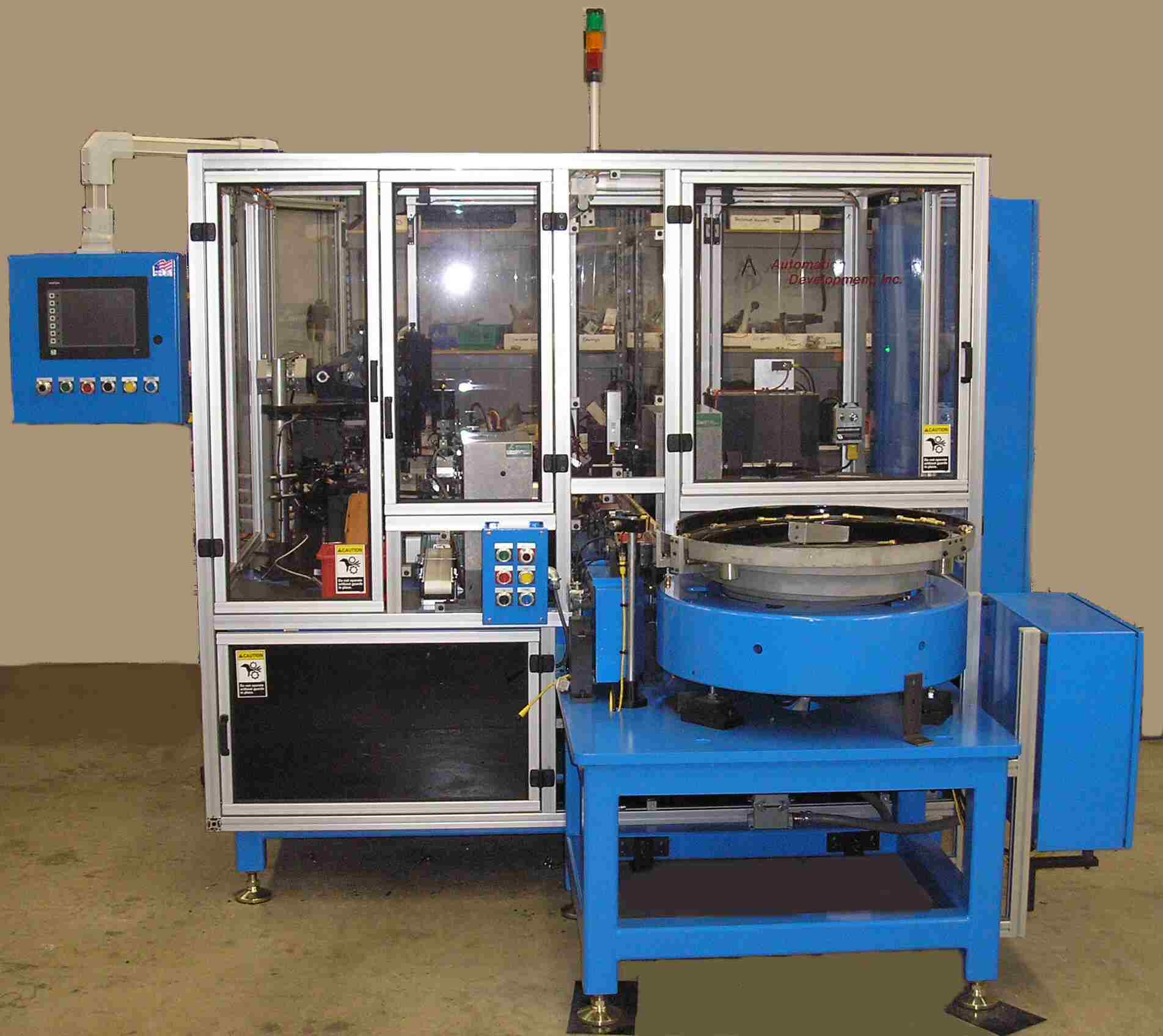

Dual Lock Rotary
Fully Automatic Dual Dial Rotary Cap Assembly

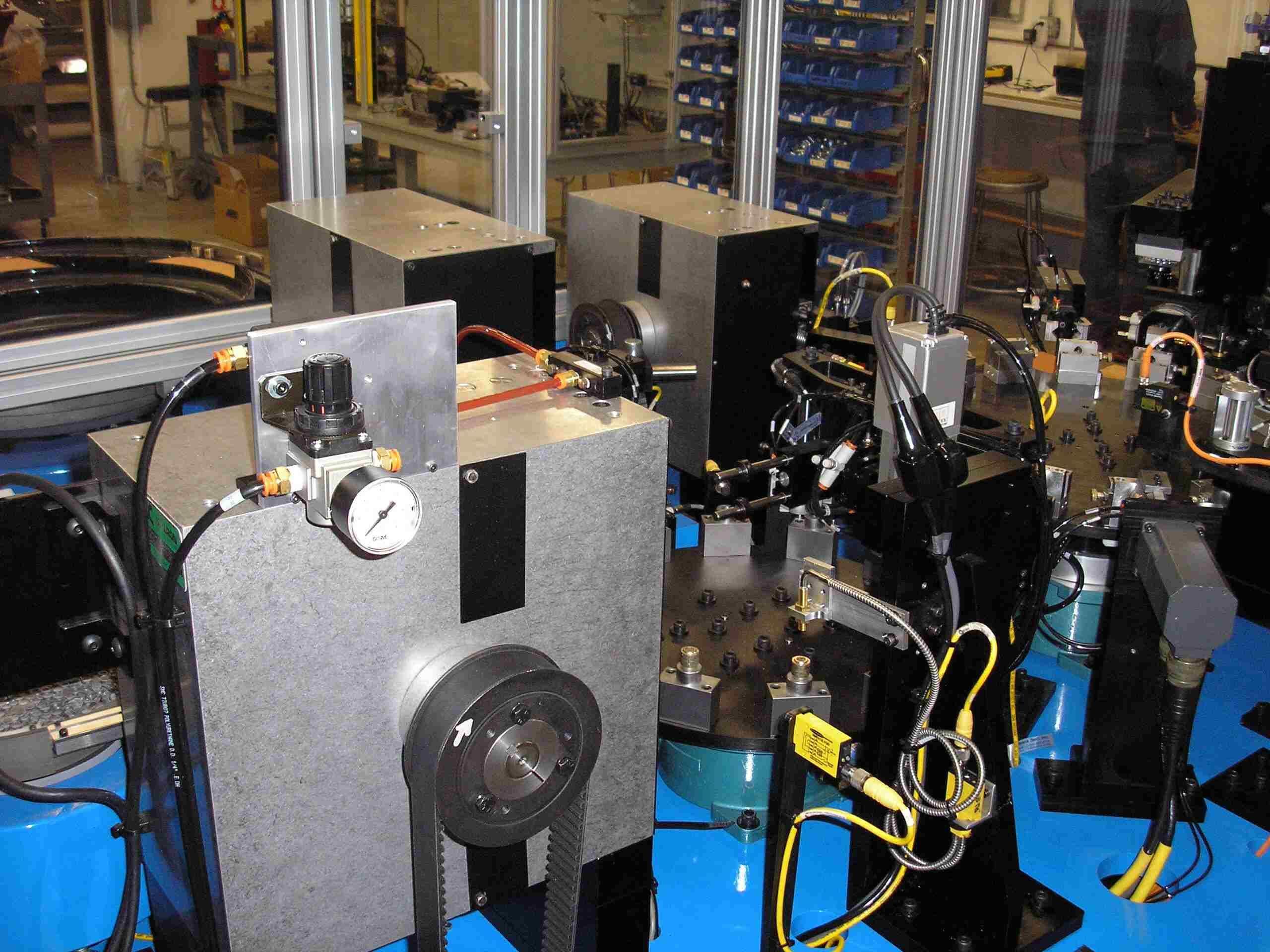

Dual Lock Rotary
Fully Automatic Dual Dial Rotary Lock Assembly
Dual Lock Rotary
Fully Automatic Dual Dial Rotary Lock Assembly

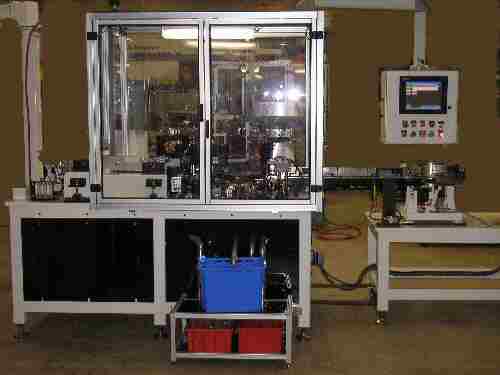

Fully Tooled Dual Dial Rotary Style Indexing Machine

Press the play button to watch the machine in action

Machine Image
Launch in external player

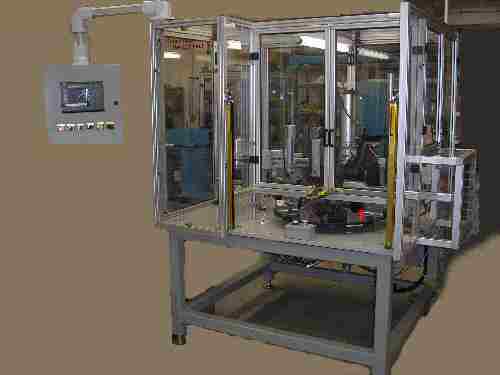

Semi-Automatic Rotary Style Indexing Machine

Press the play button to watch the machine in action

Hand Load
Launch in external player
